01
Angled internal walls
Square-shaped cabinets exhibit problems with standing waves. To combat them, additional angled internal walls were introduced to the cabinets of the M series loudspeakers, reducing the number of parallel internal surfaces.
M-Series
Architectural purity in repose—a timeless square form whose only ambition is to dissolve into the music.
Recognition
Awarded, again and again
Since its introduction, the M-Series has collected some of the industry’s most prestigious honours, with recognition from leading hi-fi publications and international design juries alike. Critics have praised its sound; designers have praised its form. Few loudspeaker lines earn both.
Engineering
Form that serves the sound
Throughout years of continuous work on the project it was made sure that not a single part of the cabinet can interfere with the quality of sound. Despite such a functional mindset behind the design, the aesthetic aspect has not been left out either: the cabinet uses the basic figure of a cross-section square, making the design timeless and easy to integrate into any interior.
Exclusive to Audes
Solid-surface cabinet
A cabinet material very few loudspeaker manufacturers have ever mastered.
The main section is made of a solid surface material composed mainly of aluminium trihydrate. Its much higher density and tensile strength compared to wood-based materials result in a stiff cabinet with minimal vibrations, significantly reducing colouration of sound.
- Higher densitythan wood-based materials
- Higher tensile strengthfor an exceptionally stiff enclosure
- Minimal vibrationsignificantly less colouration of sound
02
Downward-firing bass reflex
All loudspeakers in the series are bass reflex systems. The port sits under the front wall and fires downwards, giving more predictable behaviour in different rooms and a smaller form factor. Its shape also makes it harder for stray sound waves inside the cabinet to escape, and it is divided into several separate channels to better control the airflow.
03
Isolated crossover
To further minimise any harmful mechanical influences, the crossover is placed in a separate compartment.
04
Single-crystal copper
Single-crystal copper wiring is used throughout the system to ensure clear, but absolutely neutral sound without excessive brightness.
05
Proprietary woofers, built in-house
The woofer is designed and manufactured by Audes, specifically tuned for the M series. The silk dome tweeter’s characteristics allowed a relatively low crossover for the loudspeakers in the series.

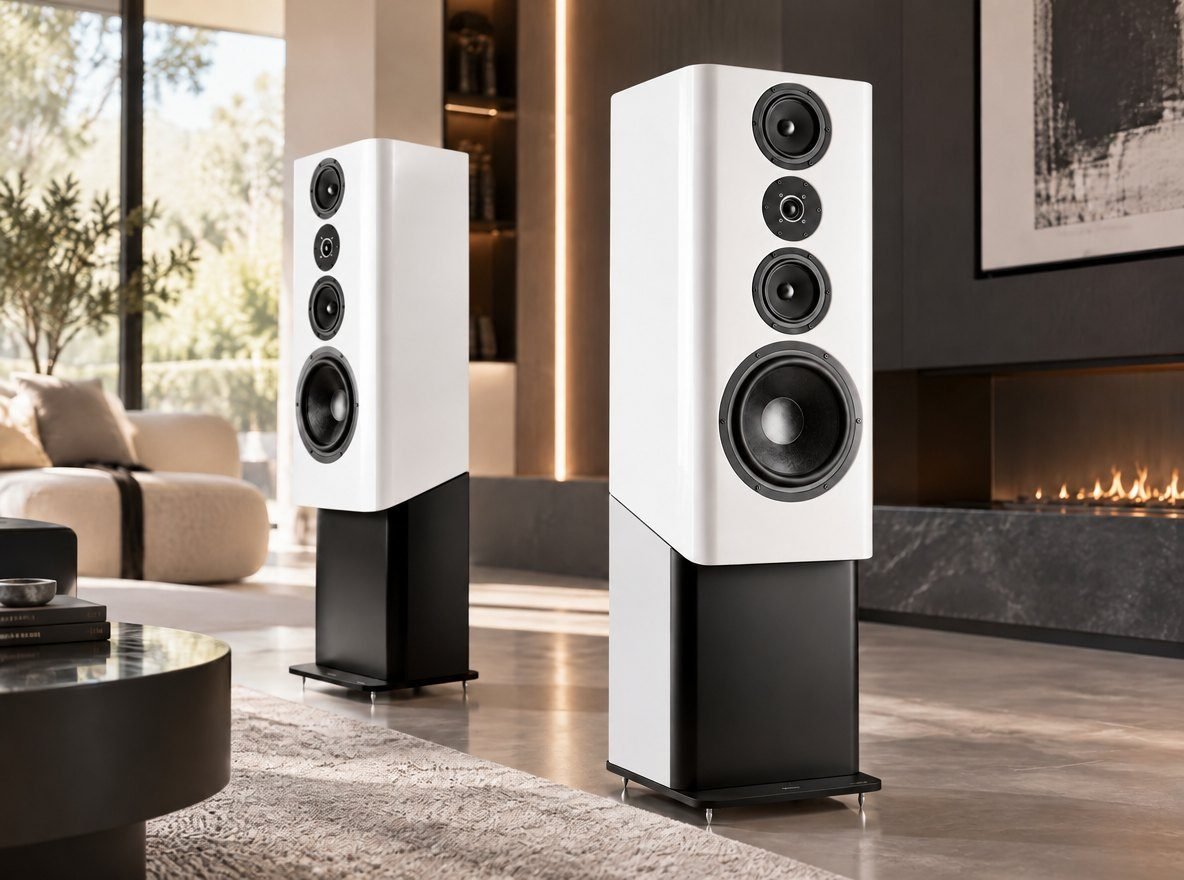

Three-way floorstander
M5
The flagship of the series. A 10″ Audes woofer, two 5¼″ woofers and a fabric dome tweeter deliver full-range sound down to 40 Hz from a cabinet that stays out of the way of the music.
40–30kHz, ±2 dB
88 dBSensitivity
46 kg102 lbs
LP Product of the Year 2023/24
Technical specifications
| Nominal impedance | 4 Ω |
|---|---|
| Max. long-term power | 60 W |
| Max. short-term power | 130 W |
| Frequency range (±2 dB) | 40–30,000 Hz |
| Crossover frequencies | 300 / 1,800 Hz |
| Sensitivity (2.83 V / 1 m) | 88 dB |
Drivers & dimensions
| Speaker drivers |
|
|---|---|
| Dimensions (mm)* | 1259 H × 345 W × 383 D |
| Dimensions (inches)* | 49⅝ H × 13⅝ W × 15⅛ D |
| Weight | 46 kg / 102 lbs |
*Dimensions include the spikes and terminals.
Two-way floorstander
M2
The same uncompromising cabinet in a more compact form. A 6½″ Audes woofer and a fabric dome tweeter, crossed over at 1,100 Hz, for rooms where space is precious but sound is not negotiable.
55–30kHz, ±2 dB
81 dBSensitivity
20 kg44 lbs
Technical specifications
| Nominal impedance | 8 Ω |
|---|---|
| Max. long-term power | 50 W |
| Max. short-term power | 110 W |
| Frequency range (±2 dB) | 55–30,000 Hz |
| Crossover frequency | 1,100 Hz |
| Sensitivity (2.83 V / 1 m) | 81 dB |
Drivers & dimensions
| Speaker drivers |
|
|---|---|
| Dimensions (mm)* | 1105 H × 252 W × 290 D |
| Dimensions (inches)* | 43½ H × 10 W × 11½ D |
| Weight | 20 kg / 44 lbs |
*Dimensions include the spikes and terminals.
The series
Side by side
| Model | M5 | M2 |
|---|---|---|
| Type | 3-way bass reflex | 2-way bass reflex |
| Drivers | 10″ + 2 × 5¼″ + 1″ | 6½″ + 1″ |
| Frequency range (±2 dB) | 40–30,000 Hz | 55–30,000 Hz |
| Crossover | 300 / 1,800 Hz | 1,100 Hz |
| Sensitivity | 88 dB | 81 dB |
| Impedance | 4 Ω | 8 Ω |
| Power (long / short-term) | 60 / 130 W | 50 / 110 W |
| Size, mm (H×W×D) | 1259 × 345 × 383 | 1105 × 252 × 290 |
| Weight | 46 kg | 20 kg |
M-Series
Handcrafted in Estonia
